Vivid™ S70N Dimension Ultra Edition

Your patients rely on you. You can rely on us.

At a glance

Advanced 2D and 4D TTE/TEE functions

Achieve reproducible results with the advanced 2D and 4D quantification features for cardiac function and valve anatomy in all your transthoracic and transesophageal exams.

Exceptional processing power

Take advantage of our powerful cSound™ software beamformer, which uses artificial intelligence based on GE HealthCare's Edison™ platform.

DICOM®-connection

Simplify your workflow: Vivid S70N Dimension allows you to process and analyze all clinical images using industry-standard DICOM® data and include them in your reporting system.

Shorter examination times

Artificial intelligence algorithms reduce manual steps and help you improve the efficiency of your workflow through automated processes. For less clicks, high accuracy and optimal reproducibility.

Vivid S70N Dimension Ultra Edition*

Maximize your clinical confidence

Vivid S70N Dimension provides you with uncompromised image quality, advanced visualization capabilities and easy measurements thus reducing tedious tasks.

Advanced quantification tools help you analyze complex issues. Deliver razor-sharp 4D images and take advantage of multi-dimensional imaging, which allows you to view up to three freely selectable and decoupled 2D planes of the same cardiac cycle simultaneously.

Get personal quote

Vivid S70N Dimension Ultra Edition

Your vision. Our superb images.

cSound is key

GE HealthCare's patented cSound software beamformer technology forms the basis of efficient ultrasound imaging. Combined with the 4Vc-D probe it allows you to chose from a wide range of advanced 2D and 4D TTE/TEE functions. Take advantage of excellent detail, contrast and spatial resolution to maximize your clinical confidence.

The specially developed software algorithm True Confocal Imaging (TCI) improves the image quality even further – especially for difficult-to-scan patients.

Ultrasound probe capturing an ultrasound image

Product Highlights

Intelligent design for perfect ergonomics

Front view of Vivid S70 Dimension ultrasound system

22" LCD monitor

View your ultrasound images in ultra-high resolution and with excellent contrast.

Excellent operator interface

Vivid S70N Dimension comes with a height- and side-adjustable control panel and is equipped with a 12" high-resolution LCD multi-touch screen.

Silent and economical

Silent fans and low heat dissipation ensure reduced power consumption and minimal background noise. The standby mode reduces power consumption, too.

Battery-powered standby

Always ready when you need it: Get your Vivid S70N Dimension up and running in a few seconds.

Exceptional mobility

Use the Vivid S70N Dimension wherever you need it. Equipped with four swivel casters (lockable) and grab handles on the front and rear, the lightweight system offers exceptional mobility.

Useful resources

Vivid Club

Access exclusive training, tips, tools, and resources for all your Vivid products.

Join now!

A group of doctors is standing with folded arms in the aisle of a hospital.

Service & Support

Benefit from our comprehensive support throughout the entire service life of your ultrasound system.

Learn more

A woman is talking to a medical professional

Find a Distributor

Are there questions left? Your local contact is happy to help you.

Find your local contact

References

* Ultra Edition is not a product name, it refers to the 2022 release of the Vivid portfolio.

Ultra fast. Ultra precise. Ultra efficient.

Shorter examination times. Increased precision.

Artificial intelligence algorithms enable the Vivid S70N Dimension Ultra Edition* to reduce manual steps and help improve the efficiency of your workflow through automated processes. Take advantage of advanced 2D and 4D ultrasound imaging to maximize your clinical confidence.

The Vivid S70N Dimension is designed specifically for your cardiac imaging needs, but also supports you in other clinical areas such as interventional echocardiography or pediatrics.

Up to 80% fewer klicks¹ thanks to AI Auto Measure 2D

AI Auto Measure 2D semi-automatically measures left ventricle diameters from the parasternal long axis (PLAX). In this process, artificial intelligence algorithms recognize an end-diastolic and end-systolic image from an acquired parasternal long axis.

Clinical image captured using AI Cardiac Auto Doppler

Cardiac Auto Doppler with AI Auto Measure Spectrum Recognition

With the power of AI, a wide range of Doppler measurements can be completed with two clicks: Freeze – Measure. A Doppler trace and full set of associated measurements will instantly appear on the screen. So you will need up to 93% fewer keystrokes.²

EASY AFI LV with View Recognition

Easy AFI is the third generation of the 2D speckle tracking analysis tool for quantitative assessment of global and segmental myocardial function, which additionally detects the individual apical sectional planes fully automatically.

Through new AI-based detection algorithms, EASY AFI allows you to perform strain analysis without manual interaction. All you have to do is initiate the analysis and approve the results with one click – you will receive the results in only 15 seconds.³

Clinical image captured using EASY AFI with View Recognition

Clinical image captured using EASY AutoEF

EASY AutoEF: Results with just one click⁴

In addition to our AutoEF quantification tool, which already automatically recognises the necessary sections (4-chamber and 2-chamber view) and selects them for the calculation, you can now determine the EF without manual interaction using our AI-based Auto-ROI recognition algorithms. All you have to do is initiate the analysis and approve the results with just one click.

Clinical Images

AFI – Automated Function Imaging

AFI 3.0 incl. 2D Auto EF detects and quantifies global and regional wall movements of the LV at rest or under AFI stress. The EF is also displayed in addition to the strain measurements of the LV.

AFI RV is the 2D speckle tracking analysis tool for calculation and parametric imaging of
longitudinal deformation of the right ventricle.

AFI LA is the 2D speckle tracking analysis tool for calculation and parametric imaging of
longitudinal deformation of the left atrium.

Clinical Images

Advanced 4D imaging capabilities

Vivid S70N Dimension offers a wide range of functions for 4D visualization of exceptional clarity and precision. Among others, the ultrasound system is equipped with several fully integrated tools to help you quantify the heart valve and ventricle.

HDlive™ visualizes light and shadow effects in the tissue.

HD Color not only enhances 4D color Doppler perception on a 2D monitor, but also provides the ability to visualize low-flow velocity components within the flow volume using transparency control.

Clinical image captured usind 4D Auto LVQ

4D AUTO LVQ: Fully integrated tool for visualisation and reproducible quantification of the left ventricle from 4D volume datasets.

Clinical image captured usind 4D Auto RVQ

4D AUTO RVQ: Fully integrated tool for visualisation and reproducible quantification of the right ventricle from 4D volume datasets.

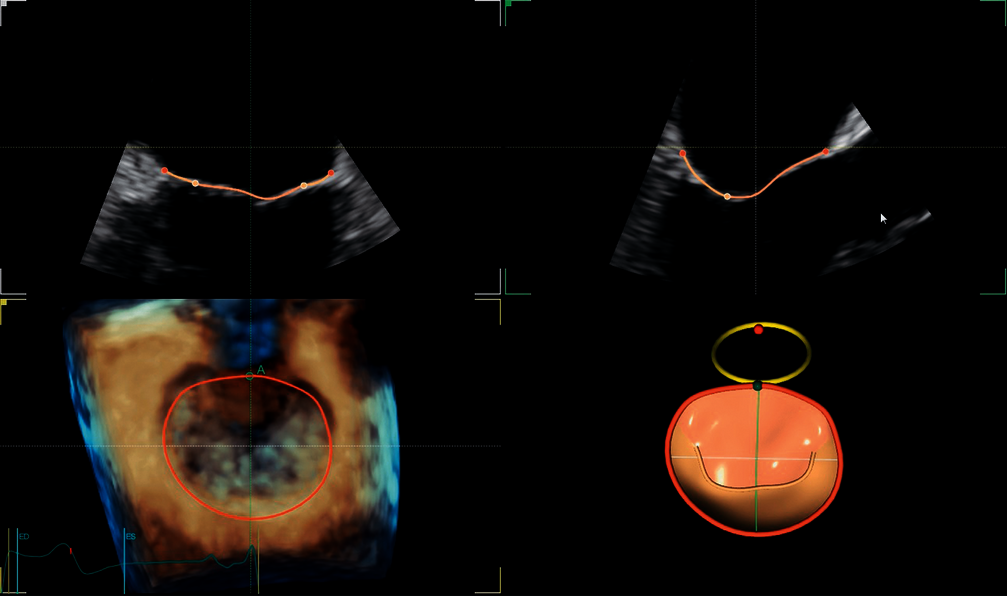

Clinical image captured usind 4D Auto MVQ

4D AUTO MVQ: This fully integrated analysis tool supports you in TEE/TTE examinations as well as the visualisation and quantification of mitral valve structures and the mitral valve annulus.

clinical image captured using 4D Auto AVQ

4D AUTO AVQ: This fully integrated tool automatically segments and quantifies the aortic outflow tract and helps, among other things, to select the right valve prosthesis for TAVI/TAVR procedures.

Clinical Images

Interventional echocardiography and pediatric examinations

Vivid S70N Dimension is your partner for complex tasks. Specially developed tools allow you to optimize intervention planning and reduce intervention time accordingly. Additionally, our ultrasound system offers a wide range of transducers for pediatrics. For example, the 6S-D, 12S-D or C3-10-D (Micro Convex) probes allow you to deliver rapid and reliable diagnoses for a wide range of pediatric, neonatal and young adult conditions.

Clinical image captured using 4D Markers

4D Markers: Create marker points in 4D and 2D view that are visible in parallel. This facilitates communication during interventions and orientation in the 4D dataset.

Clinical image captured with a 4D TEE-probe

4D TEE imaging: The system provides an excellent overview of structures and functions in cases with high and/or irregular heart rhythm, independent of ECG-guided multi-beat acquisition.

Dual Crop enables the visualisation of structures from two angles simultaneously.

Clinical image of a pediatric ultrasound exam

Probes specially designed for pediatric use allow for the visualization of small structures in the best possible quality and reliability.

10T-D Micro TEE: The Micro Multiplane TEE probe gives you high diagnostic confidence, even during the very complex scan of a neonatal patient's heart >2.5kg

References

The Role of AI in Streamlining Echocardiography Quantification White Paper, Kristin McLeod, Jurica Sprem JB20789XX.
Based on results of time and motion study conducted by GE “JB49055XX - Cardiac Auto Doppler”; study results indicated time savings related productivity increase up to ~8 on an annual basis for a facility per sonographer.
Time to strain measurement result may vary with heart rate, frame rate and Vivid system. Verification of performance done by GEHC clinical application specialists using Vivid system (DOC2739637)
Easy AutoEF is restricted for use with adult TTE on GE Healthcare raw B-mode data loops of the LV. Easy AutoEF does not support left ventricles with septal bulge.

* Ultra Edition is not a product name, it refers to the 2022 release of the Vivid portfolio.

Dive into the world of Vivid S70N Dimension

In this section you will find valuable and detailed information on Vivid S70N Dimension and its features. Choose from brochures, whitepapers and case studies that offer you detailed insights into the functioning and application areas of our ultrasound system.
